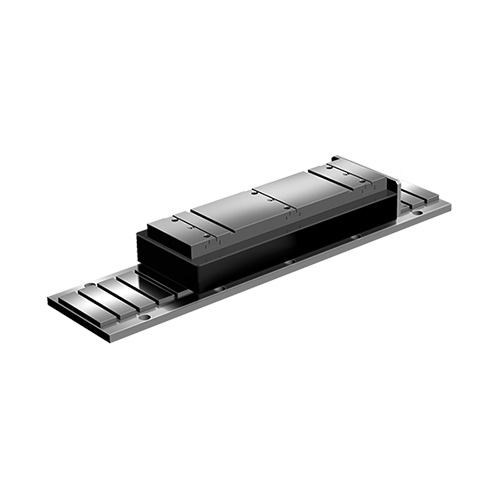

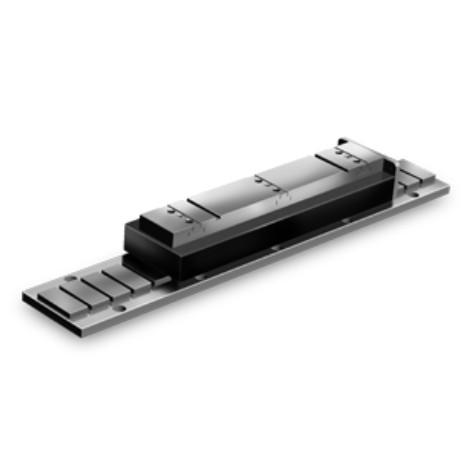

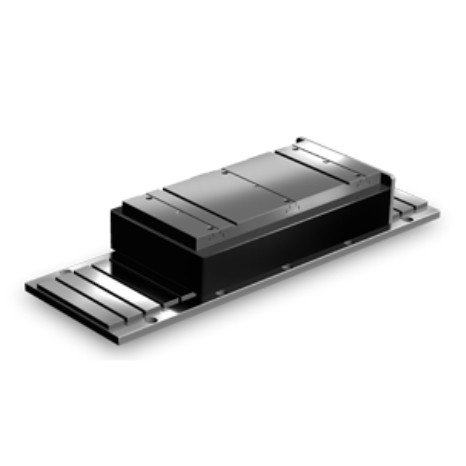

Ironcore Linear Motor (PIX200 Series)

  • Peak force up to 1393N, Continuous force up to 279N
  • Hall Sensor (Optional)

Heavy-Duty Motors For Hi-Speed Point-To-Point Applications

PIX Ironcore motors offer an affordable high force solution to demanding linear applications with a minimal cogging effect that is associated with traditional ironcore linear motors.

Our Ironcore design is designed for optimal dissipation of heat and thus capable of extremely high forces (>9000N). These motors coils are manufactured with high flex cables and optional external hall effect attachments widely used in multiple general automation applications.

Modular Flat Magnet tracks are available in different length increments complete this product selection and allows for easy assembly of un-restricted effective stroke by butting tracks of different lengths together.

  • High force/ thrust
  • Maintenance Free
  • High stiffness
  • Compact size
  • Minimal cogging

Specifications

Details specification are available at the DOWNLOADS section of this site.

PIX200 Series - Specification table

Motor ModelContinuous
Force (N)
Peak
Force
(N)
Coil
Weight
(Kg)
Motor Dimensions
without Hall Sensor
L x W x H (mm)
Motor Dimensions
with Hall Sensor
L x W x H (mm)
PIX200-027-0301085421.3193 x 55 x 38223.7 x 55 x 38
PIX200-027-0501798932193 x 75 x 38223.7 x 75 x 38
PIX200-027-08027913933.1193 x 105 x 38223.7 x 105 x 38
PIX200-040-0301899432.1193 x 55 x 51223.7 x 55 x 51
PIX200-040-05030315153.1193 x 75 x 51223.7 x 75 x 51
PIX200-040-08046123074.6193 x 105 x 51223.7 x 105 x 51
Note: Continuous force is measured under natural convection, refer to the detail parameters table for more information.

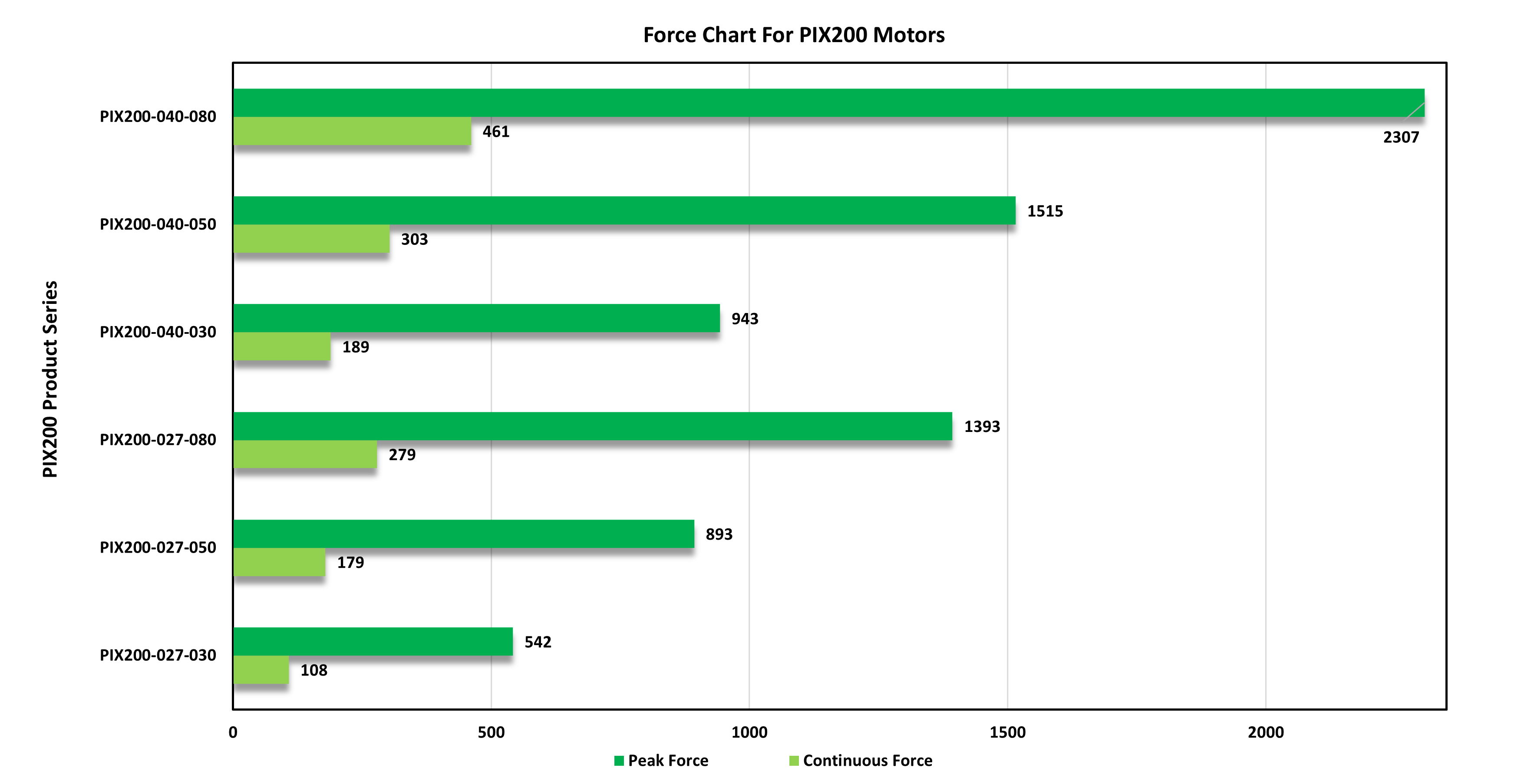

Force Chart for PIX200 Motor

Please click on the chart image to view in details.

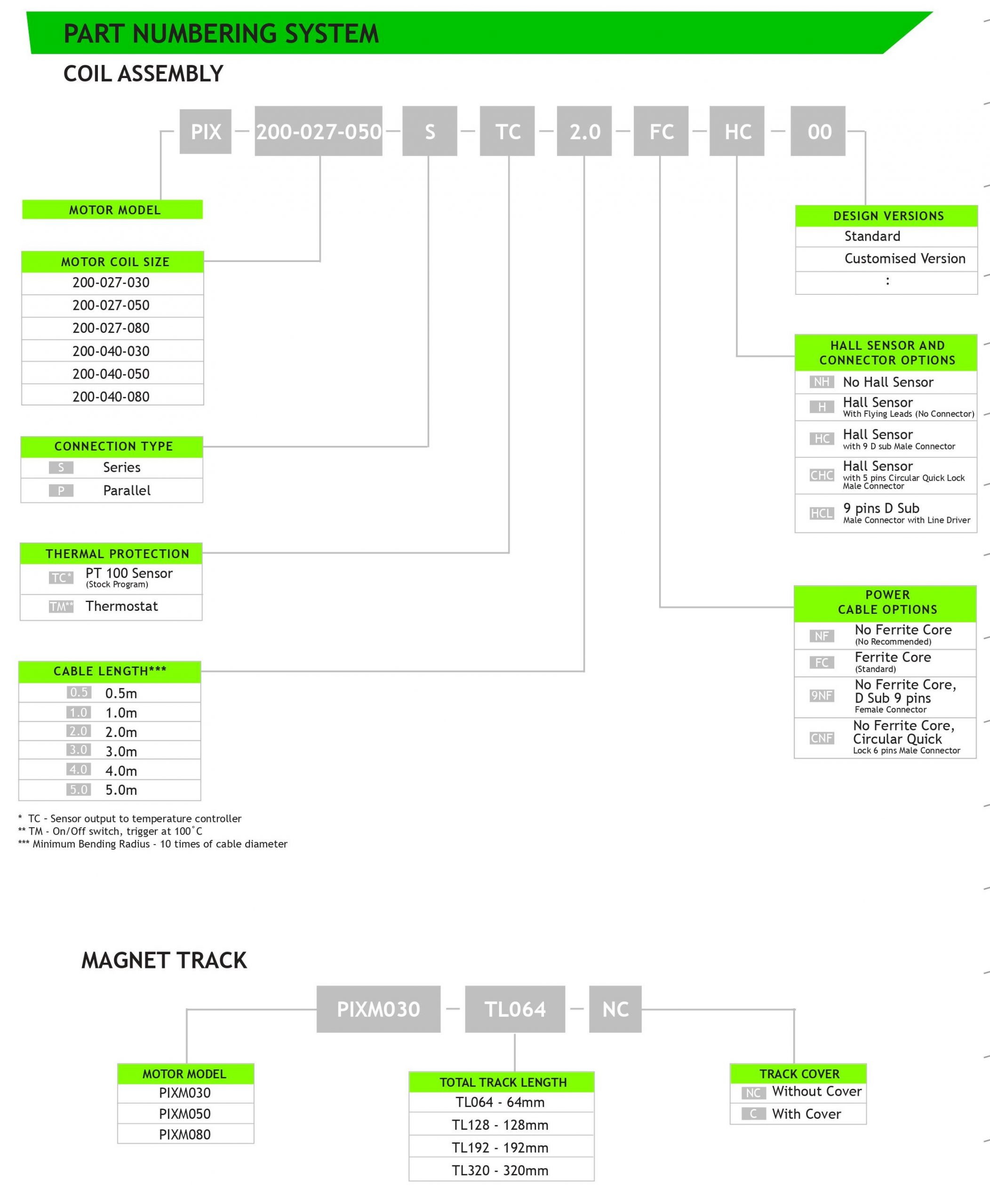

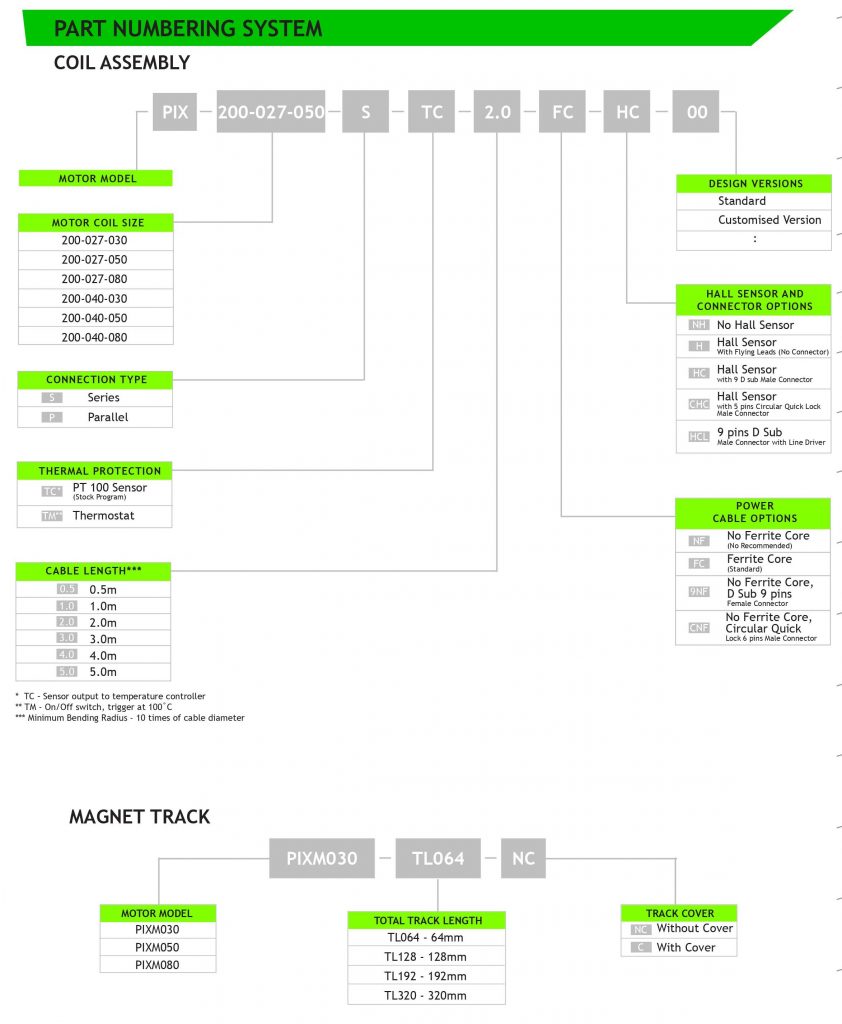

Part Numbering System

Downloads

The PIX200 Series Catalogue, 3D drawings and Motor Sizer is also available for free at the DOWNLOADS section of this site. The technical files and content (i.e. 3D Drawings, Manuals and Software) in the download area is available only for registered users.
Please register and login using the link on the top of this page to view and access these files. Registration is free.
