Heavy-Duty Motors For Hi-Speed Point-To-Point Applications
PIX B Ironcore motors offer an affordable high force solution to demanding linear applications with an anti-cogging effect that is associated with traditional iron core linear motors.
Our Ironcore is designed for optimal dissipation of heat and thus capable of extremely high forces. These motor coils are manufactured with high flex cables and optional external hall effect attachments widely used in multiple general automation applications.
Modular Flat Magnet tracks are available in different length increments to complete this product selection and allow for easy assembly of un-restricted effective stroke by butting tracks of different lengths together.
High Power Density
Anti-cogging design for smooth operation
Efficient cooling system
Modular hall sensor
High speed, acceleration and fast response
High Synchronous run
Zero backlash – direct drive technology
Maintenance-free operation – mechanical simplicity due to reduced component count
Long travels without performance loss
Specification
Details specification are available at the DOWNLOADS section of this site.
PIX 250B Series - Specification table
Motor Model
Coil Size
Continuous
Force (N)
Peak
Force (N)
Continuous
Current (Apk)
Peak
Current (Apk)
Coil
Weight
(Kg)
Motor Dimensions
without Hall Sensor
L x W x H (mm)
Motor Dimensions
with Hall Sensor
L x W x H (mm)
PIX250B-050
C1
110
240
6.8
20.4
1.5
105 x 51 x 61.1
134 x 51 x 61.1
PIX250B-050
C2
220
480
6.8
20.4
2.7
189 x 51 x 61.1
218 x 51 x 61.1
PIX250B-050
C3
330
720
6.8
20.4
4
273 x 51 x 61.1
302 x 51 x 61.1
PIX250B-050
C4
440
960
13.6
40.8
9.5
357 x 51 x 61.1
386 x 51 x 61.1
PIX250B-075
C1
183
400
6.8
20.4
2.1
105 x 75 x 61.1
134 x 75 x 61.1
PIX250B-075
C2
366
800
6.8
20.4
4
189 x 75 x 61.1
218 x 75 x 61.1
PIX250B-075
C3
549
1200
6.8
20.4
5.9
273 x 75 x 61.1
302 x 75 x 61.1
PIX250B-075
C4
733
1600
13.6
40.8
7.8
357 x 75 x 61.1
386 x 75 x 61.1
PIX250B-075
C6
1099
2400
20.4
61.1
11.6
525 x 75 x 61.1
554 x 75 x 61.1
PIX250B-100
C1
274
600
6.8
20.4
2.7
105 x 100 x 61.1
134 x 100 x 61.1
PIX250B-100
C2
548
1200
6.8
20.4
4.8
189 x 100 x 61.1
218 x 100 x 61.1
PIX250B-100
C3
823
1800
6.8
20.4
6.9
273 x 100 x 61.1
302 x 100 x 61.1
PIX250B-100
C4
1097
2400
13.6
40.8
9
357 x 100 x 61.1
386 x 100 x 61.1
PIX250B-100
C6
1645
3600
20.4
61.1
13.2
525 x 100 x 61.1
554 x 100 x 61.1
PIX250B-125
C1
366
800
6.8
20.4
3.9
105 x 125 x 61.1
134 x 125 x 61.1
PIX250B-125
C2
731
1600
6.8
20.4
7.3
189 x 125 x 61.1
218 x 125 x 61.1
PIX250B-125
C3
1097
2400
6.8
20.4
10.7
273 x 125 x 61.1
302 x 125 x 61.1
PIX250B-125
C4
1463
3200
13.6
40.8
14
357 x 125 x 61.1
386 x 125 x 61.1
PIX250B-125
C6
2194
4800
20.4
61.1
20.7
525 x 125 x 61.1
554 x 125 x 61.1
Note: Continuous force is measured under natural convection, refer to the detail parameters table for more information.

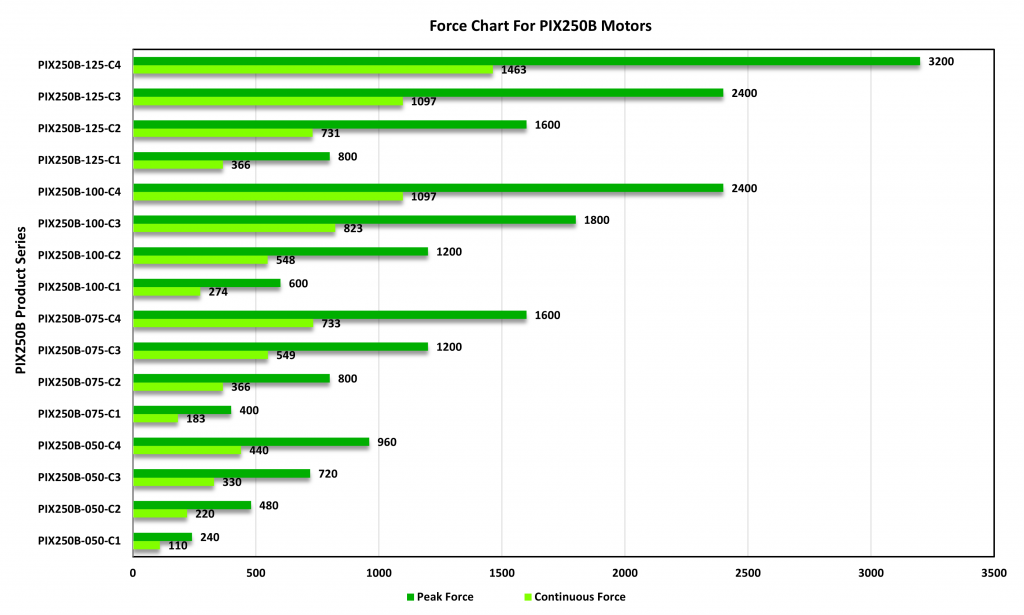

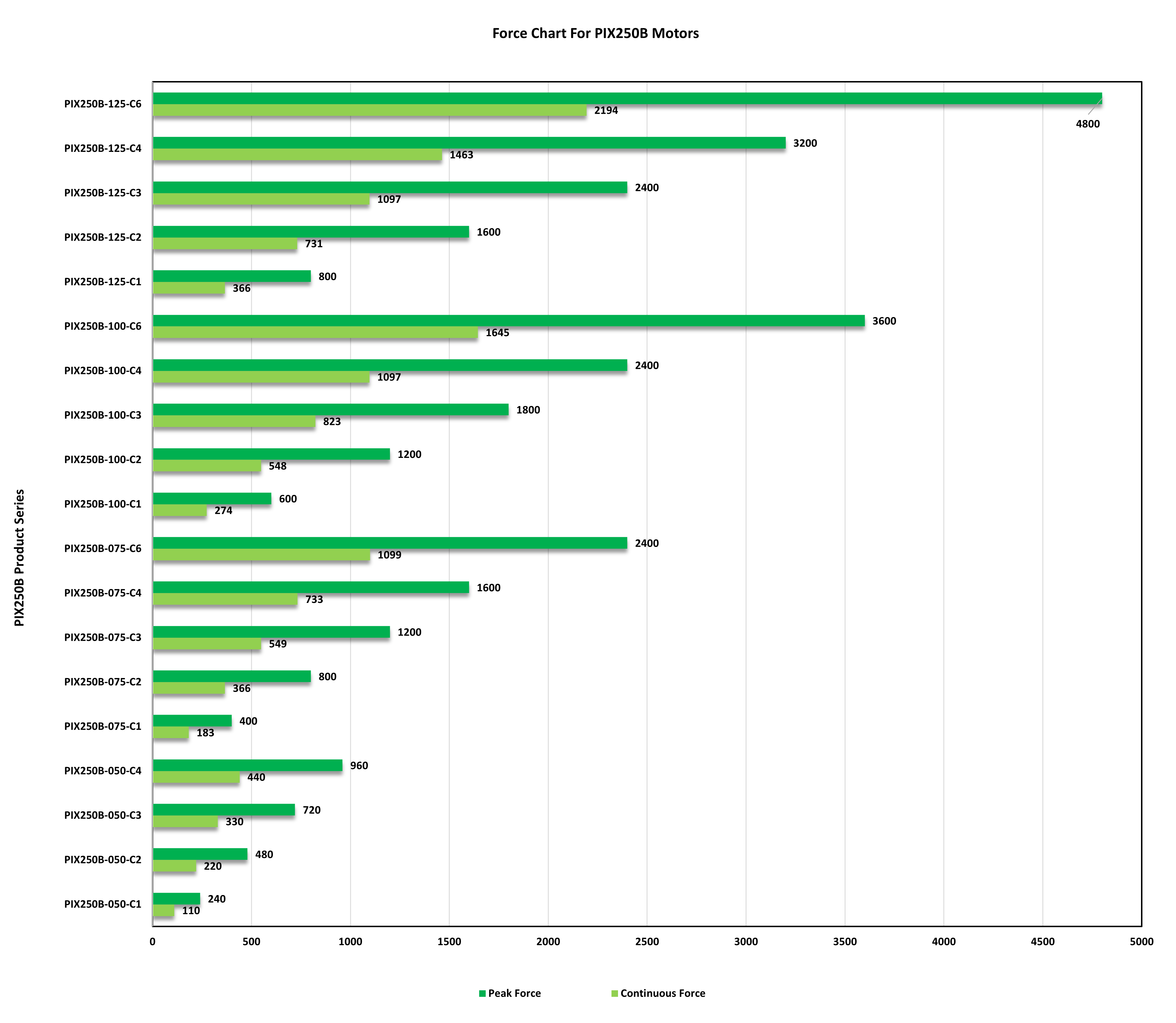

Force Chart for PIX250B Motor
Please click on the chart image to view in details.
Part Numbering System
PIX250B Series – Part Numbering System
Download
The PIX250B Series Catalogue, 3D Drawings and Linear Motor Sizer Software
are available at the DOWNLOADS section of this site.
