Case Studies

      • High Speed & High Precision LCD Panel Assembly Machine
      • Automated Stamping Machine
      • Muli-workstations

Case Studies

High Speed & High Precision LCD Panel Assembly Machine

This machine is used for the assembly of LCD panels. The machine picks up the glass plate, removes the protective film and then combines it with the aluminum plate.

There are two axis in this machine – X & Y. The X-axis is 2m-long with two carriages.

To meet the high speed and high precision motion requirements, the customer has decided to use PBA Systems DX B series Ironless linear motor.

Y X1 X2
Stroke (mm) 200 1200 800
PBA Systems Motor Model DX30B-C2S DX30B-C4S DX30B-C3S
Encoder RH200, 0.5 um RH200, 0.5 um RH200, 0.5 um
PBA Systems MaxTune Servo Drive MT-4/12-AP1 MT-6/25-AP1 MT-6/25-AP1


The main advantages of the PBA Systems DX B series Ironless linear motor are:

  • high precision motion
  • high speed and smooth motion
  • high continuous force
  • cogging-free motion
  • low setting time
  • short lead time
  • speed up to 1.5m/sec, acceleration up to 2G

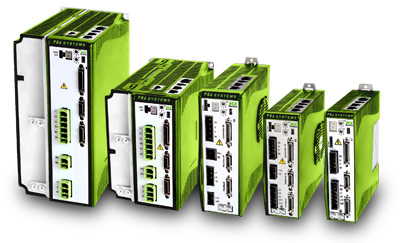

The DX B linear motors are powered by using PBA Systems MaxTune Servo Drive. The MaxTune servo drive comes with high current loop bandwidth (up to 4.5 kHz) and advanced auto-tune control functions to help reduce tracking errors and settling time. The MaxTune Servo Drive also runs on an anti-vibration algorithm that eliminates any mechanical resonance.

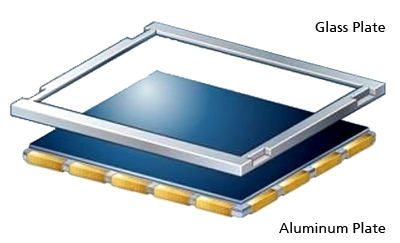

LCD Panel Assembly Machine
LCD Panel Assembly Machine


Automated Stamping Machine

This machine is used for metal plate stamping. The original system consists of a standalone industrial stamping machine which was bought off-the-shelf. The plates had to be placed and removed manually.

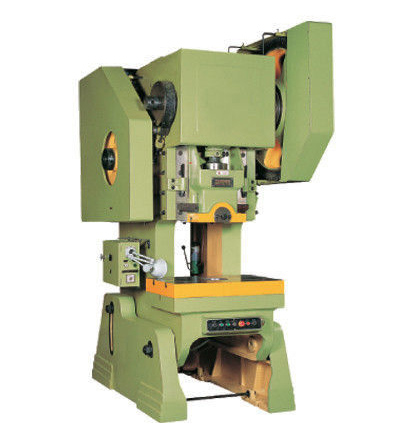

Automated Stamping Machine

To reduce overhead costs, the customer developed an automatic plate replacement system using PBA Systems DX B Ironless Linear Motor coupled with PBA Systems MaxTune Servo Drive. The Aurotek MC8841P motion control card was used to coordinate the motion of the clamps and the motors.

The most important requirements of this machine are high acceleration, high speed and high repeatability. This ensures that the stamping point is always precisely positioned and the UPH is higher than manual feeding.

PBA Systems has helped the customer achieve a cost-effective, high quality and efficient manufacturing line with high throughput.

Earlier Configuration Current Configuration
  • Manual off-the-shelf Industrial stamping machine
  • PBA Systems DX B Series Ironless Linear Motor Module
  • Drive –  PBA Systems MaxTune
  • Controller – Aurotek MC8841P Pulse and Direction PCI Card
  • Encoder – RH200
Multi-workstations Loading/Unloading System

Industries nowadays look to increasing workstations to enhance production capacity, especially if time-consuming processes are involved.


Workstations can be arranged in a circle or a straight line. The circular arrangement tends to waste space whereas the straight line arrangement requires a long axis.

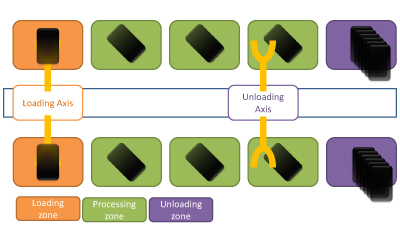

In our particular setup (see diagram), the customer uses two independent carriages on the same axis to increase the loading/unloading speed and productivity, while also saving space.

Workstations Loading Unloading System

PBA Systems IX Iron Core Linear Motors was used in place of the old servo motor and timing belt. This upgraded linear motor system allows movement speed of up to 4 m/s and two carriages in the same axis.

Earlier Configuration Current Configuration
  • Pulse and direction command controller
  • Servo drive
  • Servo motor and timing belt
  • Pulse and direction command controller
  • A5L
  • IX series linear motor
