Ultra High Frequency for Short Stroke Motion Systems
PBA’s Circular voice coils motors are simple electric linear motors consisting of a Magnetic housing and a lightweight coil. Voice coil motors do not need commutation and are often used for pure frequency oscillation. However, sub-micron positional control is easily achieved when worked in tandem with high resolution linear encoders.
Applying a voltage across the terminals of the motor causes the motor to move to one direction. Reversing the polarity of the applied voltage will move the motor to the opposite direction. The generated force is proportional to the current that flows through the motor coil. This force is almost constant in the specified stroke range of the motor. The non-commutated motor construction increases reliability and the direct coupling of the motor to the load allows for dynamic acceleration/deceleration and resultant high speed operation.
Zero Cogging, zero backlash and zero hysteresis
Extremely dynamic and high frequency motion profile
Negligible speed and force ripple at low speeds
Multiple Diameter sizes and force options
Simple operation – Only 2 terminals connections
High force versions available
Zero maintenance
High reliability
Specifications
Detailed specification are available at the DOWNLOADSÂ section of this site.
CVC Series - Specification table
Model
Stroke
(mm)
Continuous
Force (N)
Peak
Force (N)
Continuous
Current (A)
Peak
Current (A)
CVC16-SF-5
5
0.81
4.04
1.011
5.06
CVC19-SF-6
6
1.18
5.9
0.907
4.54
CVC20-SF-10
10
1.64
8.21
0.855
4.28
CVC24-SF-5
5
3.23
9.69
0.95
2.85
CVC24-SF-10
10
3.11
15.57
0.9
4.5
CVC26-SF-7
7
3.42
17.11
0.58
2.9
CVC30-SF-15
15
4.53
22.66
0.626
3.13
CVC35-HF-8
8
28.8
144
0.8
4
CVC35-HF-15
15
20.43
102.16
0.8
3.98
CVC38-SF-10
10
8.42
42.09
0.751
3.76
CVC40-SF-5
5
6.82
34.09
0.882
4.41
CVC40-HF-6.5
6.5
18.48
92.42
0.717
3.59
CVC40-HF-12
12
15.06
75.3
0.6
3
CVC40-SF-20
20
9.58
47.92
0.626
3.13
CVC44-SF-13
13
10.86
54.32
1.12
5.6
CVC50-SF-30
30
14.98
74.91
0.846
4.23
CVC50-HF-10
10
45.75
228.75
1.25
6.25
CVC60-SF-25
25
24.07
120.33
1.17
5.85
CVC60-HF-20
20
43.7
218.5
0.95
4.75
CVC90-HF-20
20
128.15
640.74
3.154
15.77
Note: Continuous force is measured under natural convection, refer to the detail parameters table for more information.
Force Chart for CVC Motor
Please click on the chart image to view in details.
Part Numbering System

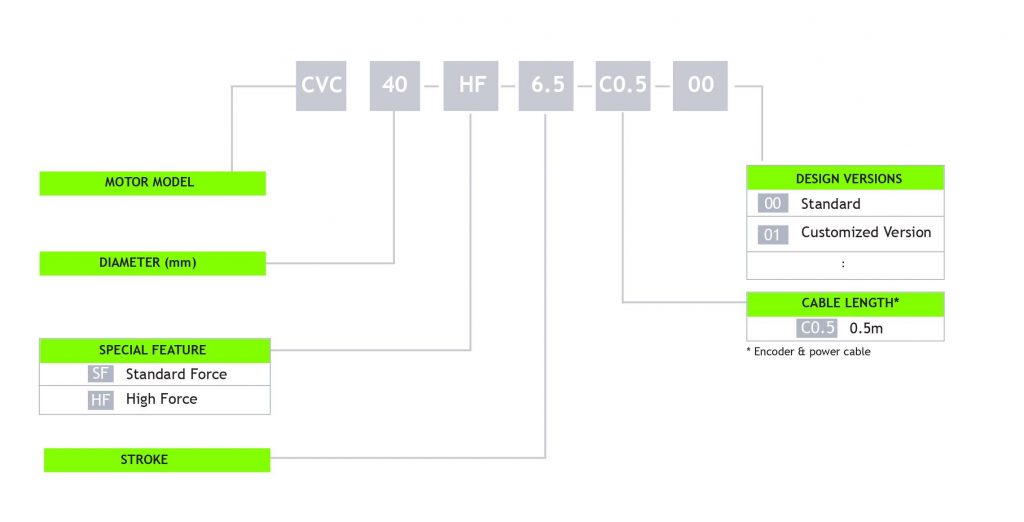

CVC Series – Part Numbering System
Downloads
The CVC Series catalogue, 3D Drawings and Motor Sizer are also available at the DOWNLOADS section of this site. The technical files and content (i.e. 3D Drawings, Manuals and Software) in the download area is available only for registered users. Please register and login using the link on the top of this page to view and access these files. Registration is free.
