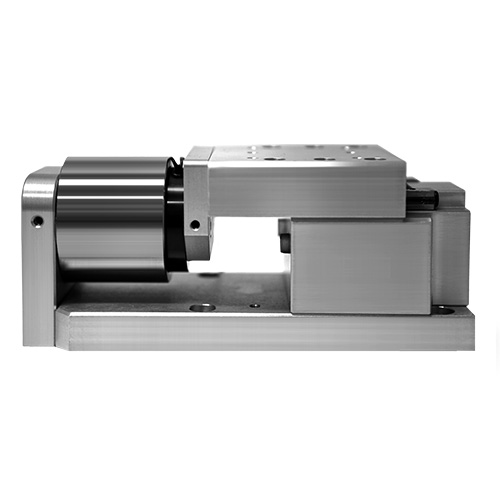

PBA’s Circular Voice Coil Positioning Stage is a compact stage ideal for closed-loop short stroke positioning applications where precision, repeatability and low speed/force ripple are of utmost importance.
CVCA stages are built with precision cross roller guides that provide high rigidity to complement the high acceleration capability of the CVC module which has very low electrical/mechanical time constants and zero hysteresis. A perfect combination for majority voice coil applications requiring precise quick oscillation at high accelerations of light payloads.
– Cross roller bearing for excellent precision and rigidity
– Zero cogging, zero-backlash and zero hysteresis
– Low moving mass, fast response
– Integrated linear encoder
– Ease of use, plug and play
– Excellent reliability
– Sub-micron resolution possibilities
Specifications
Detailed specifications are available at the DOWNLOADSÂ section of this site.
CVCA Series - Specification table
Model
Stroke
(mm)
Continuous
Force (N)
Peak
Force (N)
Continuous
Current (A)
Peak
Current (A)
CVCA35-HF-8.0-CRX
8
28.8
144
0.8
4
CVCA40-HF-6.5-CRX
6.5
18.48
92.42
0.717
3.59
CVCA40-SF-20-CRX
20
9.58
47.92
0.626
3.13
CVCA50-SF-30-CRX
30
14.98
74.91
0.846
4.23
CVCA60-SF-25-CRX
25
24.07
120.33
1.17
5.85
CVCA60-HF-20-CRX
20
43.7
218.5
0.95
4.75
CVCA90-HF-20-CRX
20
128.15
640.74
3.154
15.77
Note: Continuous force is measured under natural convection, refer to the detail parameters table for more information.
Force Chart for CVCA Actuator
Please click on the chart image to view in details.
Part Numbering System
CVCA Series – Part Numbering System
Downloads
The CVCA Series catalogue, 3D Drawings and Motor Sizer are also available at the DOWNLOADS section of this site. The technical files and content (i.e. 3D Drawings, Manuals and Software) in the download area are available only for registered users. Please register and login using the link on the top of this page to view and access these files. Registration is free.
